SIP MANURE AND SPREADERS AND HAYMAKING

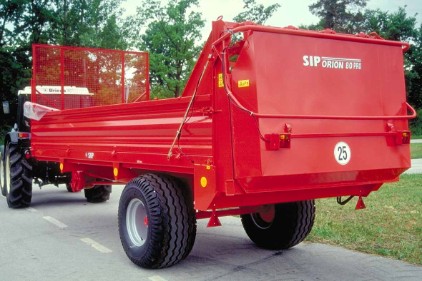

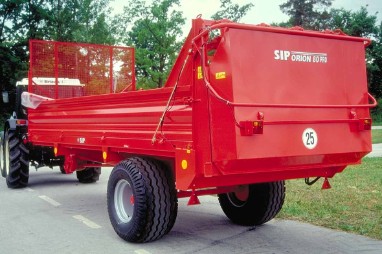

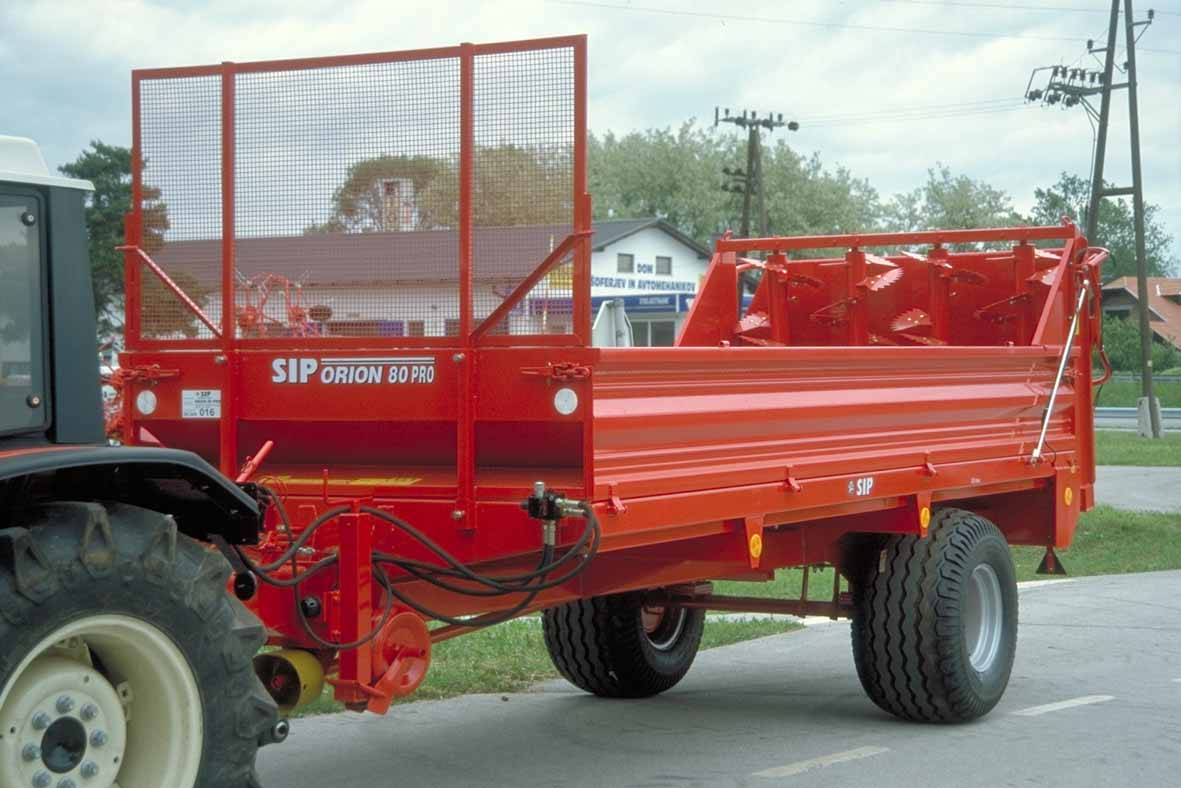

SIP ORION MANURE SPREADERS

Perfection of comfort and safe work:  robust construction with sidewallsmade of steel, wide undercarriage, break away device on the hitch, hydraulically operated spreading device protection, automatic chain tightener, hydrostatic drive and stepless steering of the chain conveyor - all out of tractor cabin.  Capacity:  6000 kg

SIP DISC MOWER

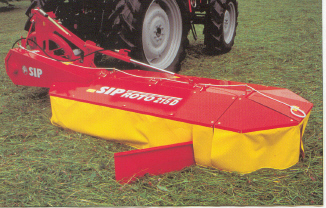

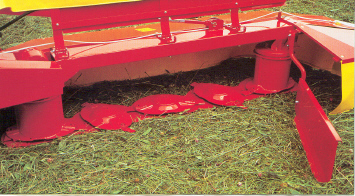

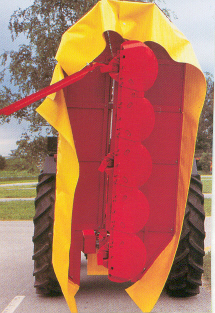

SIP ROTO 215 D REAR DISC MOWER

Light yet solid series of rear disc mowers of 1,75 - 2,50m working width suitable also for light-weight tractors.  Elastic drive over 4 V-belts, PTO shaft with freewheel, mechanical break away device, pivoting headstock, deflector plates, cutting height adjustment over topping skids, transport hydraulics and strong counterbalance spring provide reliable, safe, cost-effective and comfortable operation.  SIP ROTO 215D REAR DISC MOWER, cutter-bar with 4/5/6 discs, 8/10/12 blades and deflector plates to form even swaths.

SIP URO32 ROTARY TEDDER RAKE

URO 320 is a multi purpose tractor implement for tedding, scattering and raking of forage into even swaths.  It is featured by modern and strong construction, high working performance, versatile usage and low maintenance cost.

TECHNICAL DETAILS
Rotors -----------------------------------2
Work capacity (ha/h)-------------------Up to 3,0
Working width at tedding (m)---------3,0
Working width at raking (m)-----------2,8
Machine width (m)----------------------1,5
Machine height (m)---------------------1,5
Machine lenght (m)---------------------2,0
Work speed (km/h)---------------------Up to 12,0
Weight (kg)------------------------------335
Min. power required (kW/HP)---------15/20
Tyres-------------------------------------16.00 x 6.50
PTO shaft revolutions (rpm)----------400-540
Rotating head revolutions at 540rpm----192
PTO shaft - lenght (m)---------------------1,6
Safety clutch (Nm)--------------------------600
